Single-phase motor

S

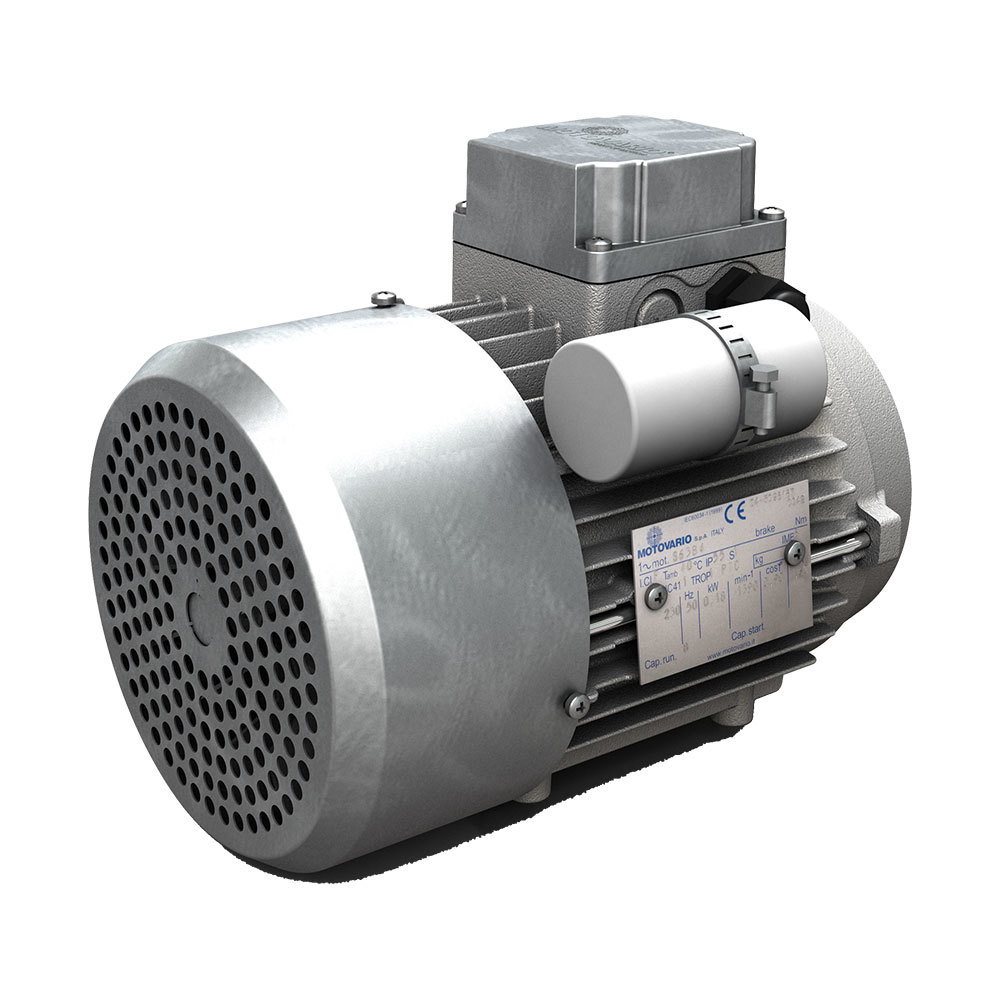

Single-phase motor

  • Single-phase motor
  • Single-phase motor

The commercial range also offers 4-pole single-phase asynchronous motors as per IEC international standards, from size 063 to 100, in versions with B5 and B14 flanges and B3 feet, in a power range from 0.12 kW to 2.2 kW.

Certifications Available: ATEX 3GD - UL/CSA/EAC

Warranty: Two years from date of delivery.

Characteristics
Range
Downloads
Request more info
  • Motors designed in accordance with the requirements of IEC 34 family and relevant harmonized standards derived within the EEC
  • External surface ventilation
  • Aluminium or die-cast aluminium alloy cage rotor
  • Insulation class F or H
  • Degree of protection IP55
  • Unified size and shaft heights from 63 to 100
  • Power ratings and dimensions in accordance with IEC 72-1 from 0.12 to 2.2 kW
  • Polarity: 4
  • Over-temperature compatible with Class B
  • Ambient temperature + 40°C
  • Altitude < 1.000 m above sea level

To enable us to identify the correct product for your requirements please complete the below form.

The highlighted fields are mandatory.

Required field
Required field
CUSTOMER INFO
  • Required field
  • Required field
  • Required field
  • Required field
  • Required field
  • Required field
APPLICATION DATA
Motor Type

Motor Information
Required field
Required field
Required field
Required field

Protection degree

Gearbox speed (rpm)

Speed range (rpm)

Required torque (max/average)

Description of the application

Stop-Starts/Hr (Qty) - Duty

Hours-Run/Day

Casing version

Gearbox mounting

Mounting position (see catalogue)

Loading (Please refer to the “Service Factor” paragraph on the catalogue)

Fr/Fa radial/axial load

Connection(direct, coupling, belt drive, chain...)

Minimum Service Factor required

Certifications/ Regulations required
ENVIRONMENT CONDITIONS

Presence of external heat sources ((from sun, environment and/or machines)

Installation environment
Type of atmosphere
The following information is useful and necessary to identify the correct product according to the European ATEX Directive 94/9/CE. Please, fill the blank spaces of this document. Important note: Motovario cannot supply products for Atex 1D/1G or Zone 0

Type of zone
GAS
DUST

Permitted surface temperature
GAS (Temperature class)

DUST

Motovario, if above information is provided, can confirm harmonization to EN1127-1 and from EN13463-1 to EN13483-8 for: H/HA Series - Helical gear reducers, B/BA Series - Helical bevel gear reducers, S Series - Shaft mounted gear reducers, NMRV/NMRV-P Series - Worm gear reducers.
In case of order, the information above must be provided to enable the supply of the product necessary certification, file number and data for the nameplate.
