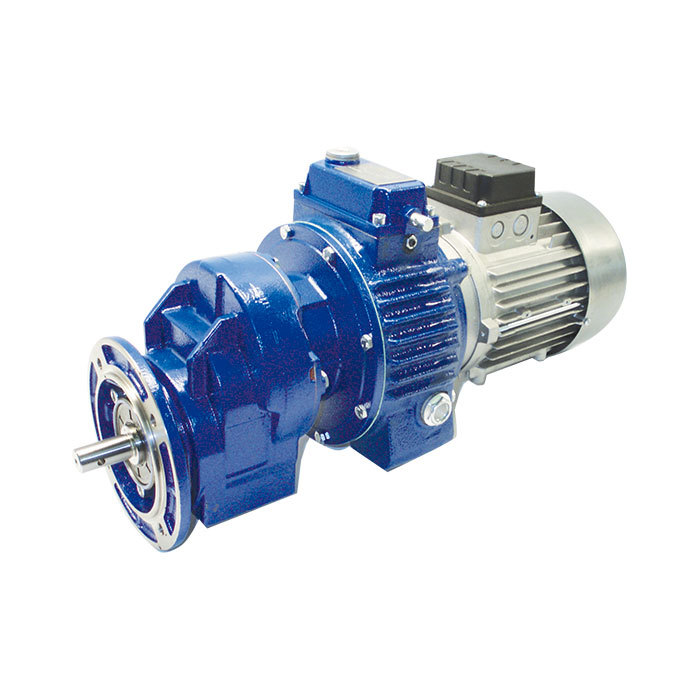

Motovariators-gear reducers
VH-VHA
With great reliability developed over 45 years of service, the VAR series motovariator-gear reducer is a viable alternative to electronic drives and is easy to use and maintain.
The VH version in cast iron with compact design is available with variators from size 003 to 100 combined with helical gearmotors in cast iron from size 030 to 125.
The VHA version in aluminum with compact design is available with variators from size 002 to 010 combined with helical gearmotors in cast iron from size A30 to A60.
Certifications Available: ATEX 2GD/3GD
Warranty: Two years from date of delivery.
Characteristics
VH
- Compact version
- Variator sizes: 003-005-010-020-030-050-100 combined with helical gear reducer: 030-040-050-060-080-100-125
- Power up to 9,2 kW
- Cases in G200 grey cast iron for high strength and optimized with FEM analysis
- Torque value max 5.000 Nm
- Painted with RAL 5010 blue epoxy-polyester powder
VHA
- Compact version
- Variator sizes: 002-005-010 combined with helical gear reducer: A30-A40-A50-A60
- Power up to 2,2 kW
- Cases in die-cast aluminium alloy
- Torque value max 480 Nm
- Painted with RAL 5010 blue epoxy-polyester powder
-
