Industrial ventilation and air handling units (AHU) for

The challenge of high-efficiency ventilation

• Operational continuity: The need for uninterrupted 24/7 operation

• Dynamic control: Precise airflow control via 0–10 V signals and Modbus

• Environmental resistance: Protection against dust and the elements for outdoor installations (Rooftop)

• Regulatory compliance: Compliance with ErP 2026 energy-efficiency requirements

• Maximum savings: Synchronous technology to cut electricity consumption dramatically

• Compact design: Ideal for integration into tight spaces inside AHUs

• Robustness: Built to last and withstand heavy workloads

• Versatility: Perfect for any type of centrifugal or axial fan

• Smoke extraction: Guaranteed operation even in a fire emergency

• IP66 protection: Motors and inverters ready for outdoor use with no additional protection

This is why you should choose Motovario

1. Power Train: Integrated solution (inverter + motor)

2. Reduced footprint: Minimal space requirement (highly valued by AHU manufacturers)

3. Plug & Play: Ready to use, easy to set up.

4. IE4/IE5 efficiency: High-efficiency synchronous motors to minimise energy consumption.

5. Compact design: High power density, allowing easy integration into air handling units (AHUs) where space is limited.

6. Sustainability: Reduced motor overheating, resulting in a longer service life for bearings and mechanical components.

7. The L510s inverter: A compact solution for standard and OEM fans.

8. The E510 (IP66) and F510 (IP55) inverters: Maximum protection for motors installed in harsh environments or outdoors.

9. High-efficiency electric motors: Perfect synchronisation between the drive and the motor to minimise power losses.

10. Flexibility: An extended power range of up to 400 kW to meet the needs of any installation.

Innovation in airflow: a solution from Motovario

Technical details:

TECO smoke extraction (Smoke Spill) and standard induction motors:

1.High-temperature resistance: Certified to operate at extremely high temperatures (e.g. 200°C, 300°C or 400°C) for a specified period (usually 2 hours)

2.Robust construction: Fitted with special bearings and high-temperature grease that does not melt.

3.High efficiency (IE3/IE4/IE5): Designed to use less energy, reducing ventilation running costs.

4.Reliability and versatility: Corrosion-resistant cast iron or aluminium construction, suitable for almost all industrial environments.

5.Plug & Play: Easy to install and compatible with most TECO and Motovario inverters.

The TECO inverter:

1.Fire Mode: A dedicated function for extracting smoke in an emergency.

2.Sensorless vector control (SLV): Precise torque and speed control for smooth fan start-up.

3.Integrated PID: Automatic speed control based on measured pressure or temperature.

4.Integrated EMC filter: Reduction of electromagnetic interference in commercial and industrial settings.

5.IP66/IP55 protection: Ideal for direct installation on board the machine or in outdoor environments (Smoke Spill/Rooftop).

6.Communication protocols: Integrated Modbus and BACnet for complete supervision via BMS.

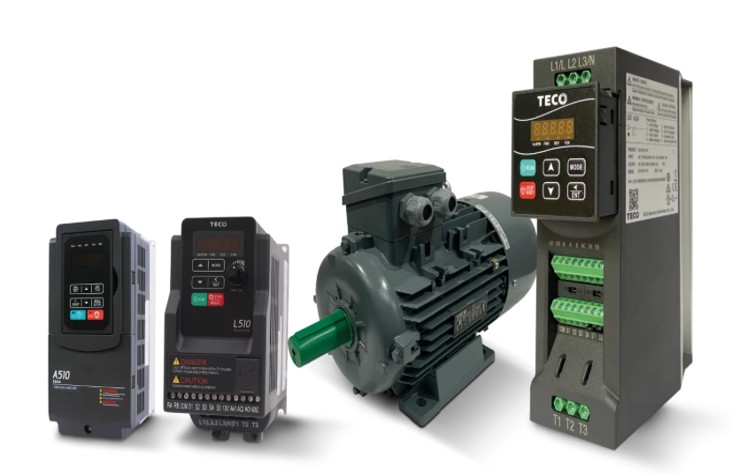

Electric motors for ventilation

SELF POWER Self-starting synchronous motor

Synchronous reluctance motor, self-starting, IE4. From 0.55 to 7.5 kW

IEC cast iron and aluminium motors

Induction motors in cast iron and aluminium, IE3 and IE4. From 0.37 to 400 kW

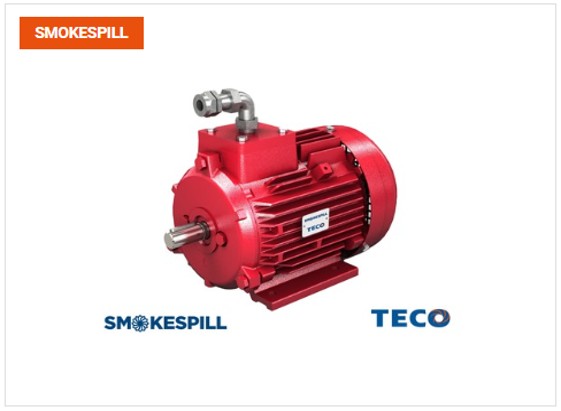

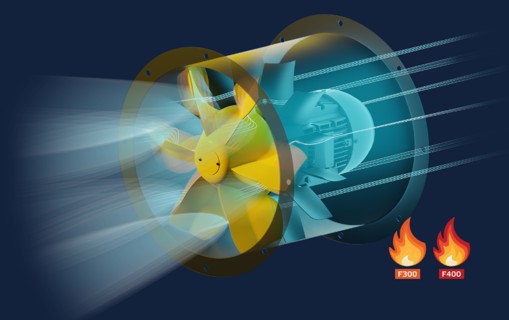

Smokespill motors

Certified induction motors F400, F300 and F200, IE2 and IE3. From 0.12 to 315 kW

Inverter for ventilation

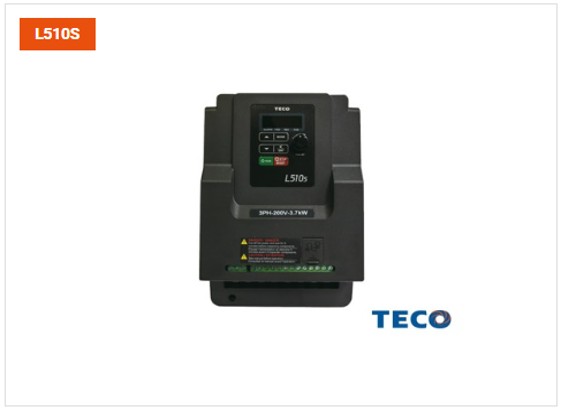

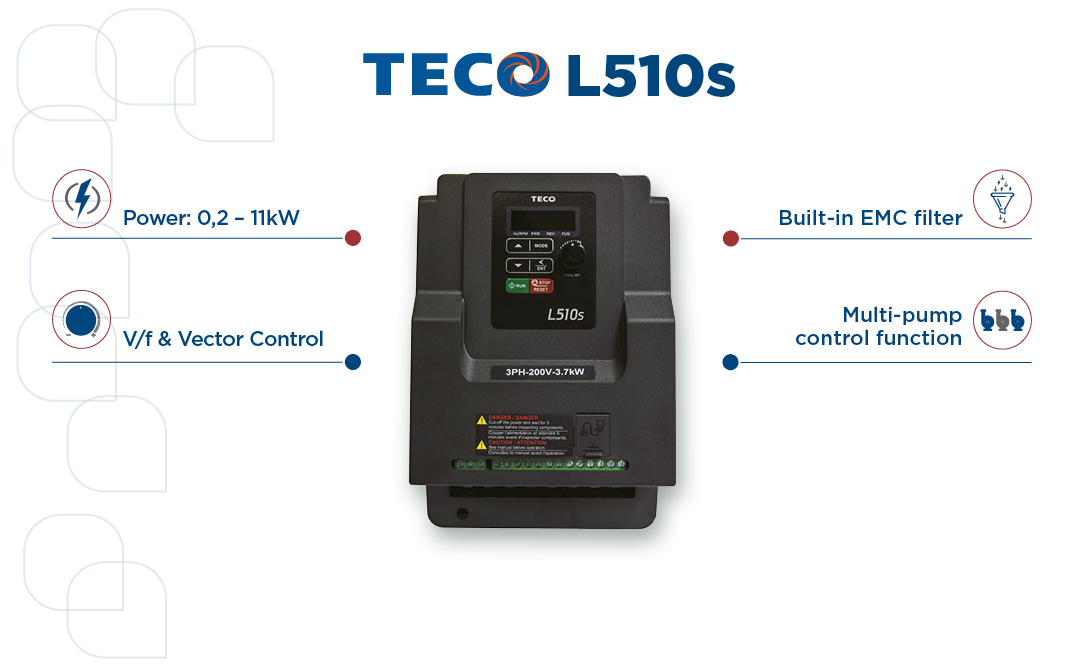

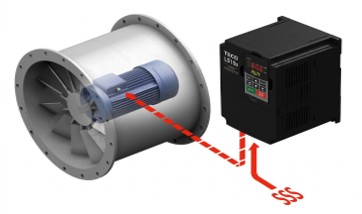

L510s inverter

Precise control using sensorless vector control (SLV) mode for asynchronous motors from 0.2 to 11 kW

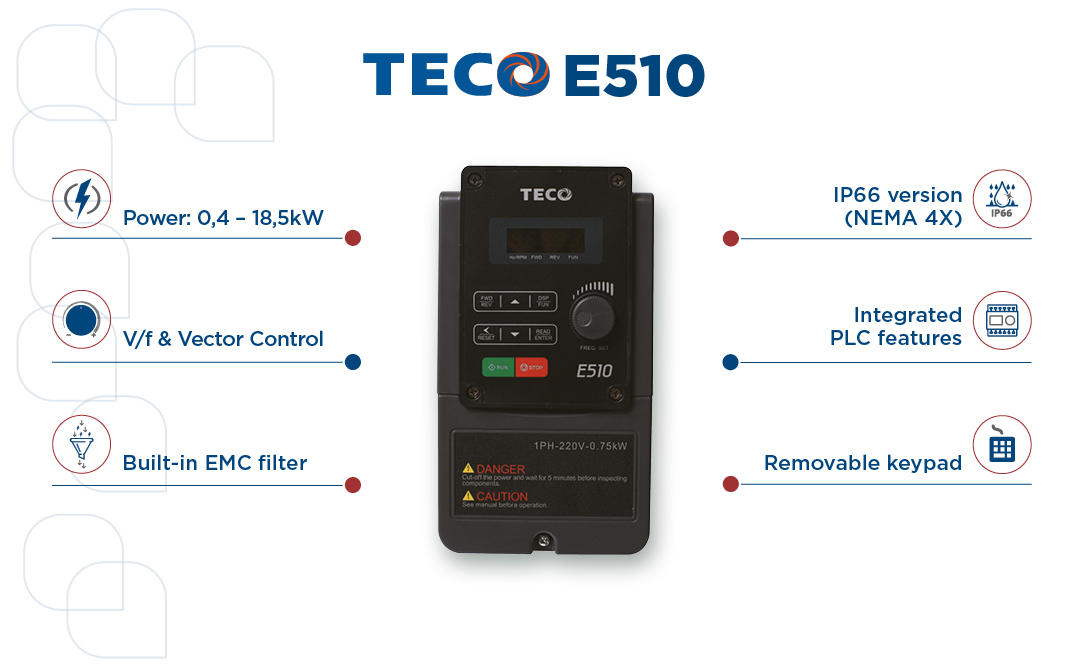

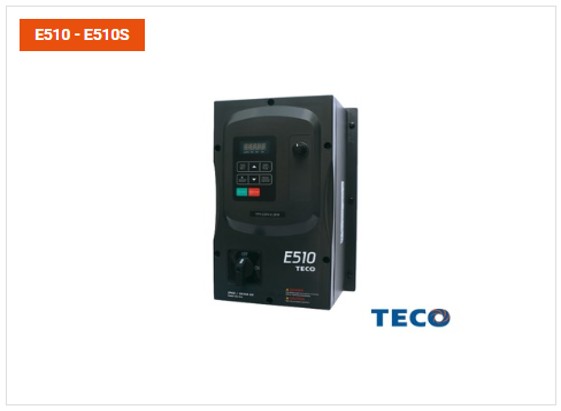

E510 inverter

Maximum protection against dust and water (IP66) for outdoor and rooftop installations from 0.37 to 18.5 kW

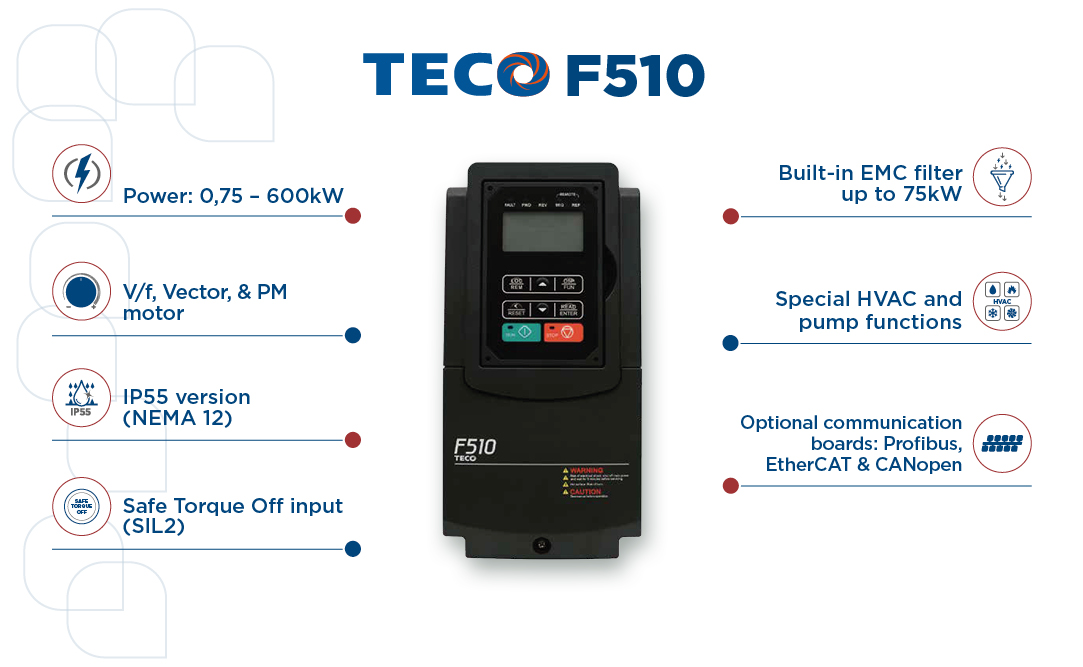

F510 inverter

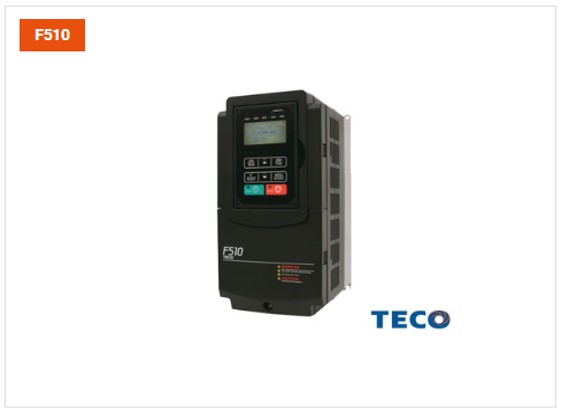

Advanced HVAC solution with Fire Mode (Smokespill) function for large systems from 0.75 to 600 kW

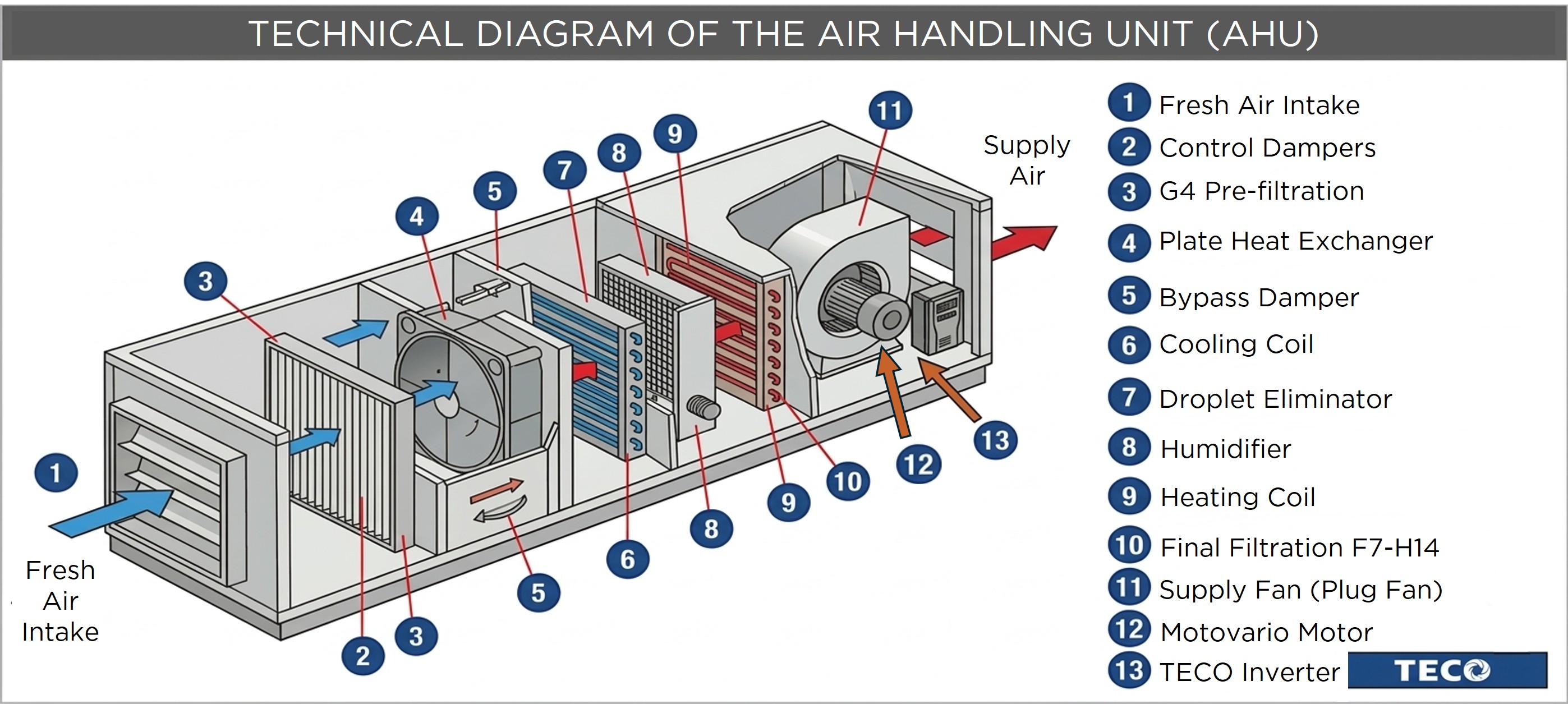

Process stages and benefits

1 – Fresh air intake:

Entry point for clean air from outside.

2 - Control dampers:

Mechanical valves that regulate the volume of air entering and leaving the system.

3 – G4 pre-filtration:

Filters that trap larger dirt particles to protect the internal components.

4 - Plate heat exchanger:

Recovers thermal energy from the exhaust air to save on heating and cooling costs.

5 - Bypass damper:

Allows air to bypass the heat exchanger when the outside temperature is already ideal.

6 - Cooling coil:

A heat exchanger that lowers the air temperature in summer.

7 - Droplet eliminator:

Removes excess moisture (condensation) to prevent damage or mould in the ducts.

8 - Humidifier:

Adds steam or atomised water to maintain the right level of humidity for comfort.

9 - Heating coil:

A heat exchanger that heats the air in winter.

10 - Final filtration F7-H14:

High-efficiency filters that remove fine dust, bacteria and viruses.

11 - Supply fan / Plug fan:

The “heart” of the system, driving conditioned air through the ductwork.

12 - Motovario motor

A high-efficiency electric motor that drives the fan.

13 - TECO inverter

The electronic brain that regulates motor speed, ensuring maximum energy savings.

Fields of application

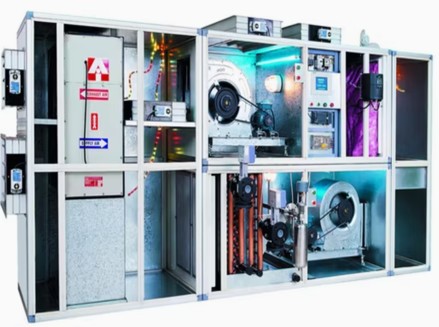

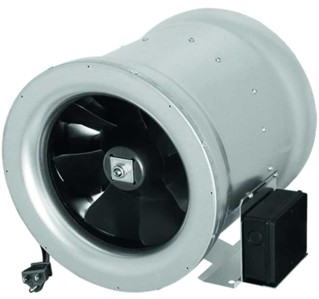

Air handling unit (AHU):

Centralised air exchange and filtration systems for commercial and industrial buildings.

Smoke extraction systems:

Fans certified for fire safety in car parks, tunnels and shopping centres.

Ventilation for corrosive environments:

Applications in laboratories or chemical plants that require inverters with a high degree of protection (IP66).

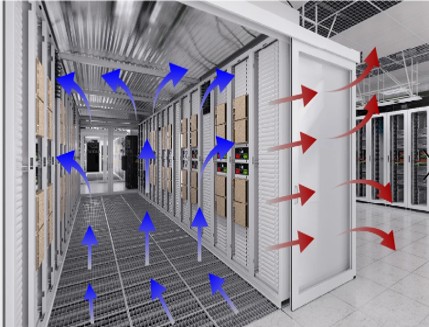

Data centres and clean rooms:

Environments that require ultra-precise control of air pressure and airflow.
