Drives F510

Drives F510

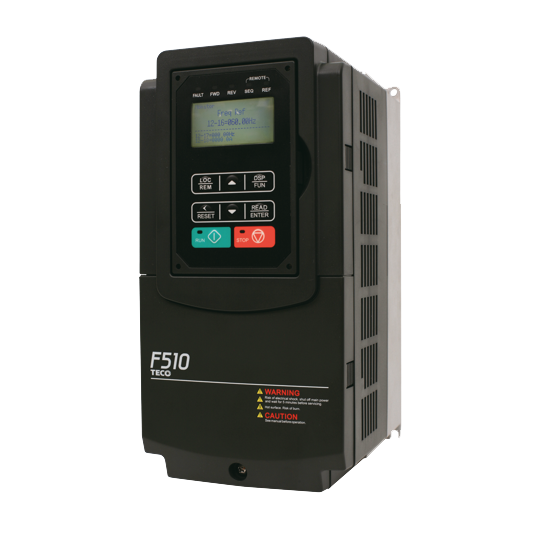

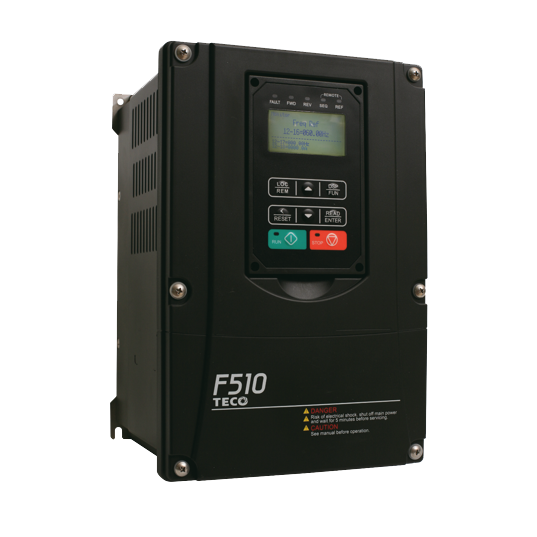

The F510 Fan and Pump AC Drive is an easily configured and versatile drive product that will control almost any application involving fans, blowers, and centrifugal pumps. It comes standard with a simple-to-X pre-set application parameter for commonly applied fan and pump applications.

It is the ideal product for fan and centrifugal pump applications: HVAC; Wastewater; Industrial Cooling Towers; Industrial pumping and Irrigations

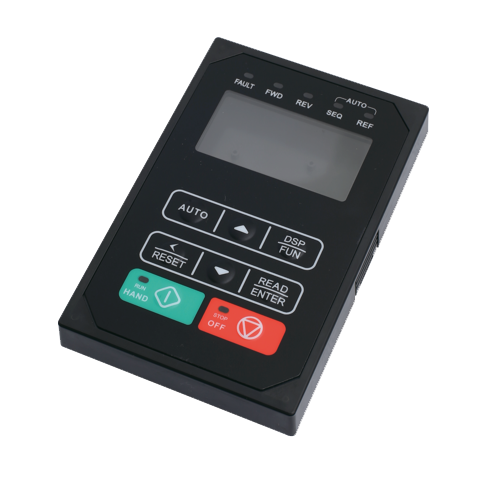

It is available with an intelligent Keypad with real-time clock and can regulate pump cascade up to four pumps to operate at optimum efficiency. In addition it can control up to 8 pumps to share the load.





  • Built-in pump cascade control for up to 4 pumps
    • Option card for control of up to 8 pumps
  • Two separate PID loop controls
    • Switch between PID loops based on input signal or real-time clock setting
  • Extensive monitoring and display capabilities
  • Real time clock built-in (RTC)
  • Conformal coating of all printed circuit boards (non-hazardous)
  • Plenum Rated
  • Built-in Modbus RTU, BACnet MS/TP, or Metasys (N2) communications via on-board RS485 or RJ45 connection
  • Built-in PLC functionality
  • Scalable process parameters to engineering units
  • Digital I/O
    • 6 Configurable digital inputs
      • Over 40 available Xions per input
      • Assign inputs as normally open or normally closed
      • 24V power supply on board
      • Extremely fast update time
    • 3 Configurable digital relay outputs
      • Qty (1) form C and (2) form A type relays
      • Over 20 available Xions per output
      • Assign outputs as normally open or normally closed
    • Dedicated hardware safety input for user’s emergency interface
      • Xable fast ramp or coast stoppingz
  • Analog I/O
    • 2 Analog inputs
      • One channel assignable as 0-10V or 4-20mA input signal
      • Assignable gain and bias for each channel
    • 2 Analog outputs
      • Assignable as 0-10V or 4-20mA signals
      • Over 20 available Xions per output
      • Assignable gain and bias for each channel
    • PTC input
      • Direct reading of water temperature
  • Pulse input and pulse output signals
    • 1 pulse input capable of up to 32 khz
    • 1 pulse output capable of up to 32 khz
  • 3 modes of auto tuning to best adapt the F510 with the applied motor
  • Controls induction or permanent magnet motors
  • 100 Mhz RISC process for ultra-high-speed computations and rapid loop-time updates
