B Series
Helical bevel gear reducers - aluminium

Helical bevel gear reducers

BA - IBA - CBA

The technological content of BA-Series gear reducers allows for an extraordinary performance/lifespan ratio. These highly versatile gear units are successfully used in a vast number of industrial and civil applications. BA-Series units offer excellent value for money and output torque/weight ratio, especially considering that they need very limited servicing.

Available in aluminium from size A40 to A70.

Certifications Available: ATEX 3GD

Warranty: Two years from date of delivery.



DOWNLOAD 2D/3D CAD DRAWINGS



Characteristics

  • Sizes: A40-A50-A70

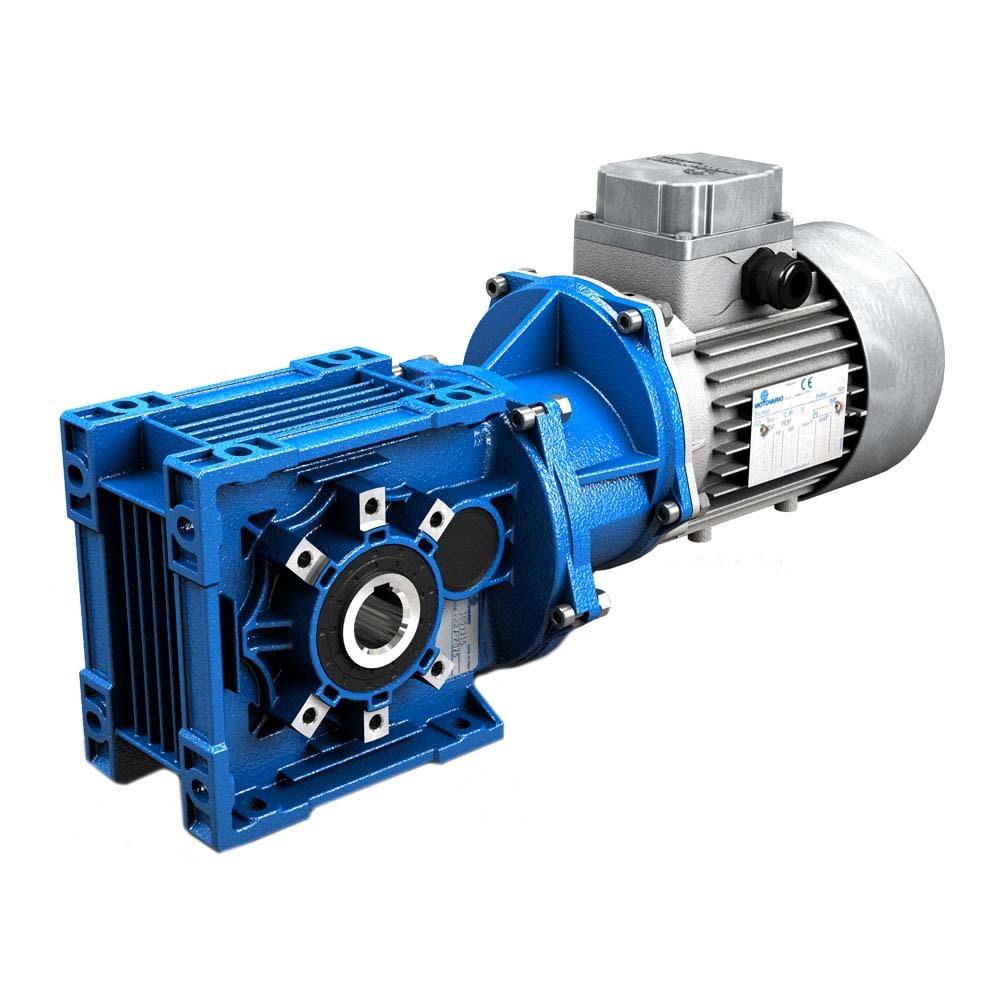

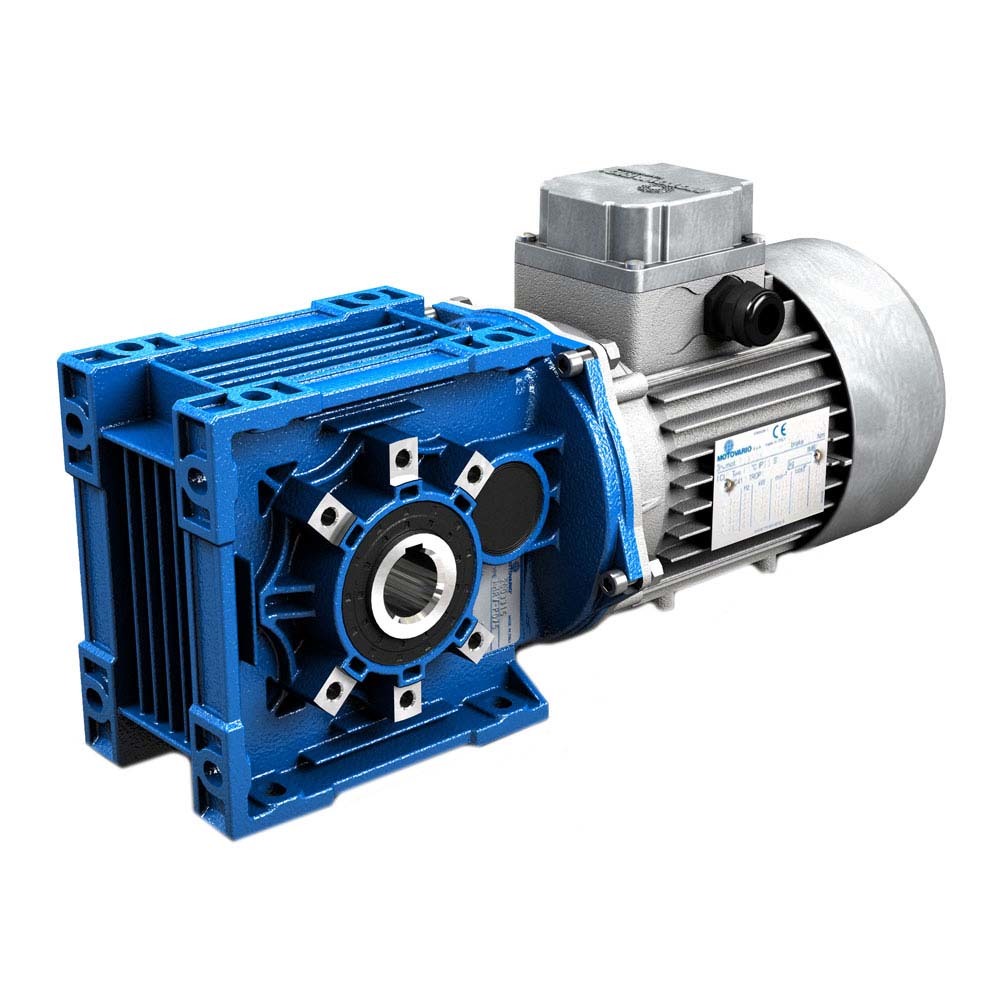

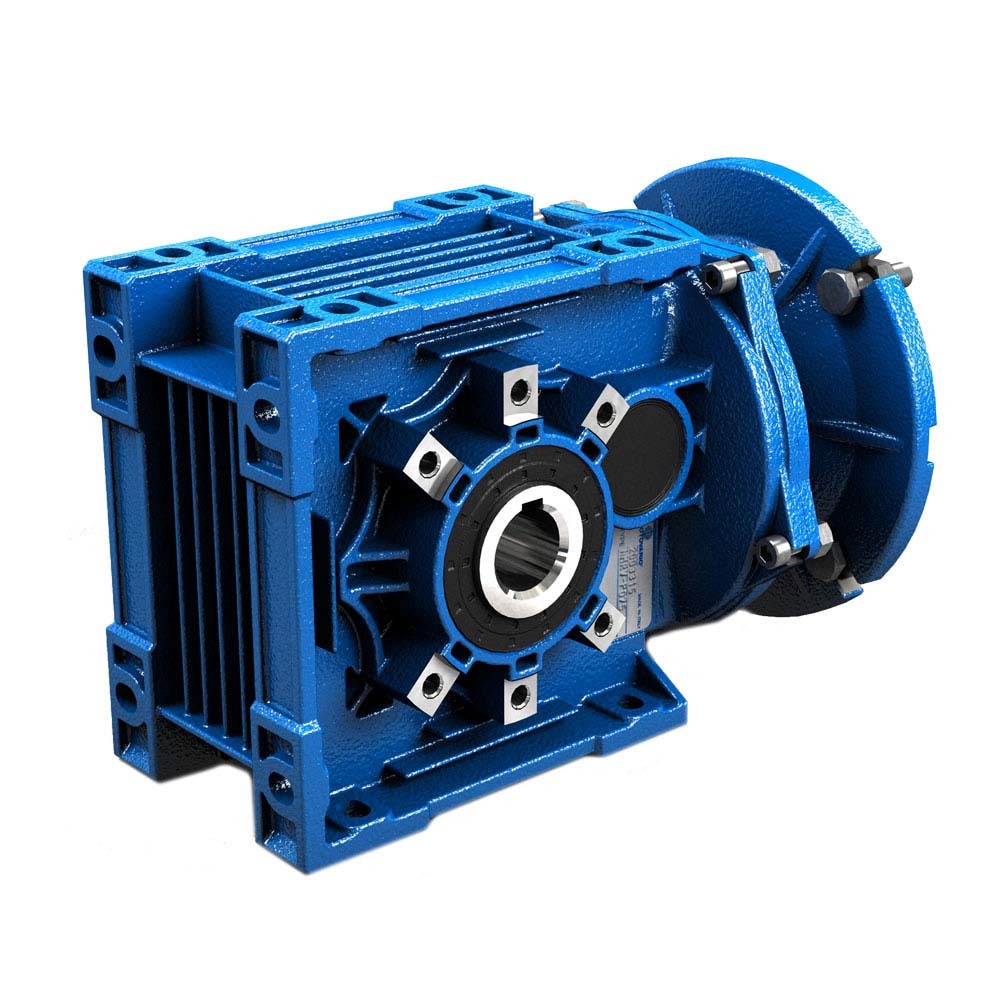

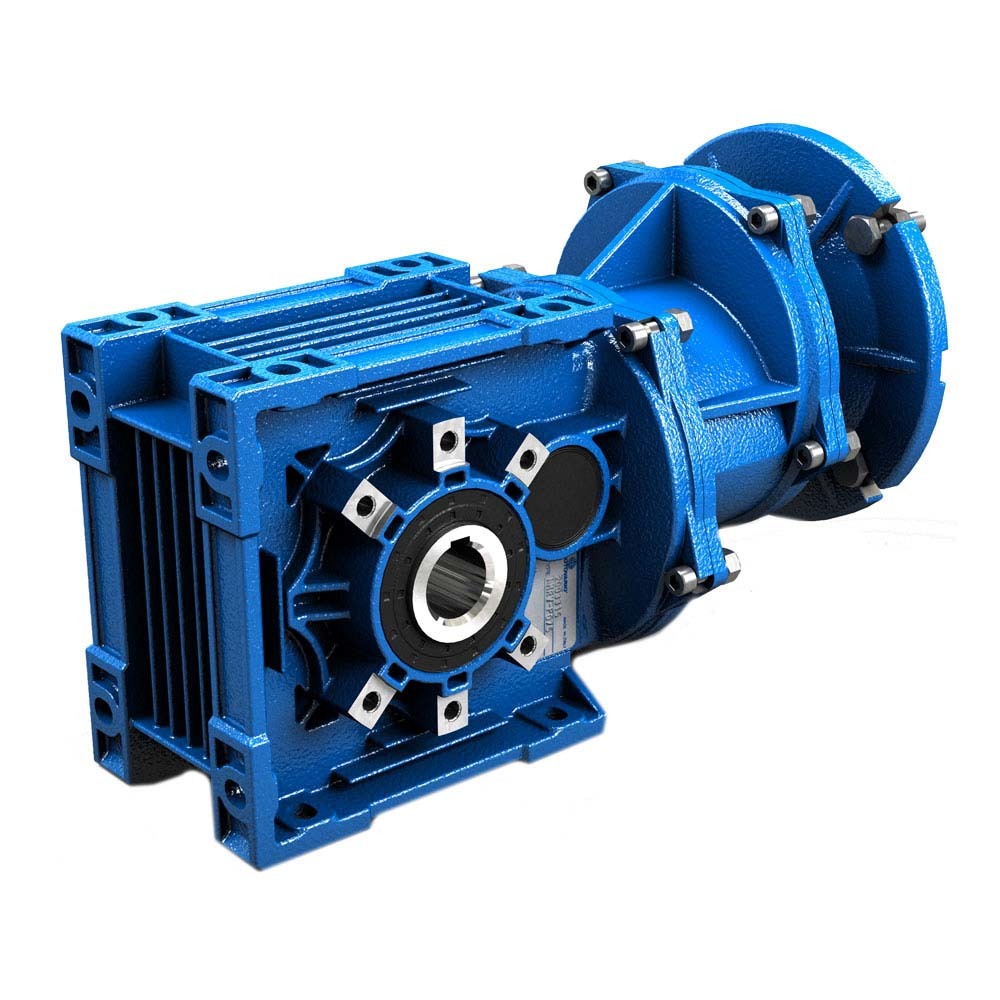

  • Available versions: BA - fitted for motor coupling, IBA - with input shaft, CBA - with compact motor
  • Universal casing
  • Power up to 5,5 Kw
  • Gears hardened and tempered with shaved or ground profile
  • Gearing with  2 and 3 reduction stages
  • Hypoid bevel gears for size A40 and A50, gleason bevel gear pairs for size A70, all with run-in profile
  • Reduction ratios between 7,62 and 442,76
  • Torque max 450 Nm and admissible radial loads max 10.000 N
  • Casing in die-cast aluminium alloy
  • Load capacity calculated and verified according to ISO 6336 and AGMA 2001
  • Painted with RAL 5010 blue epoxy-polyester powder
  • Accessories: torque arm, output flange, output shaft, shrink disk, viton oil seals
  • Downloads
  • Product check list

    To enable us to identify the correct product for your requirements please complete the below form.

    Required field
    Required field
    CUSTOMER INFO
    Required field
    Required field
    Required field
    Required field
    Required field
    Required field
    APPLICATION DATA
    Motor Type

    Motor Information
    Required field
    Required field
    Required field
    Required field

    Protection degree

    Gearbox speed (rpm)

    Speed range (rpm)

    Required torque (max/average)

    Description of the application

    Stop-Starts/Hr (Qty) - Duty

    Hours-Run/Day

    Casing version

    Gearbox mounting

    Mounting position (see catalogue)

    Loading (Please refer to the “Service Factor” paragraph on the catalogue)

    Fr/Fa radial/axial load

    Connection(direct, coupling, belt drive, chain...)

    Minimum Service Factor required

    Certifications/ Regulations required
    ENVIRONMENT CONDITIONS

    Presence of external heat sources ((from sun, environment and/or machines)

    Installation environment
    Type of atmosphere
    The following information is useful and necessary to identify the correct product according to the European ATEX Directive 94/9/CE. Please, fill the blank spaces of this document. Important note: Motovario cannot supply products for Atex 1D/1G or Zone 0

    Type of zone
    GAS
    DUST

    Permitted surface temperature
    GAS (Temperature class)

    DUST

    Motovario, if above information is provided, can confirm harmonization to EN1127-1 and from EN13463-1 to EN13483-8 for: H/HA Series - Helical gear reducers, B/BA Series - Helical bevel gear reducers, S Series - Shaft mounted gear reducers, NMRV/NMRV-P Series - Worm gear reducers.
    In case of order, the information above must be provided to enable the supply of the product necessary certification, file number and data for the nameplate.
