Shaft mounted gear reducers
S - IS - PS - CS
Specifically designed for applications involving conveyors or augers, these units are also suitable for a wide variety of industrial fields.

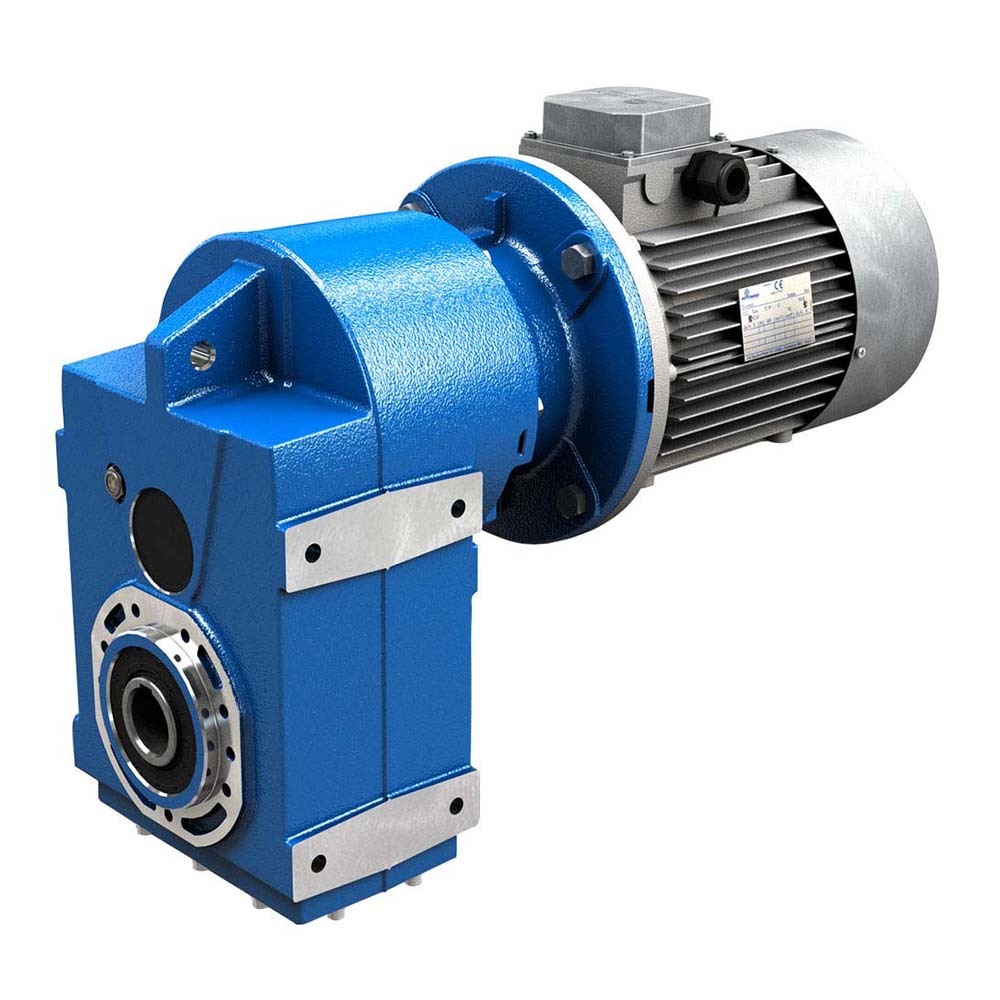

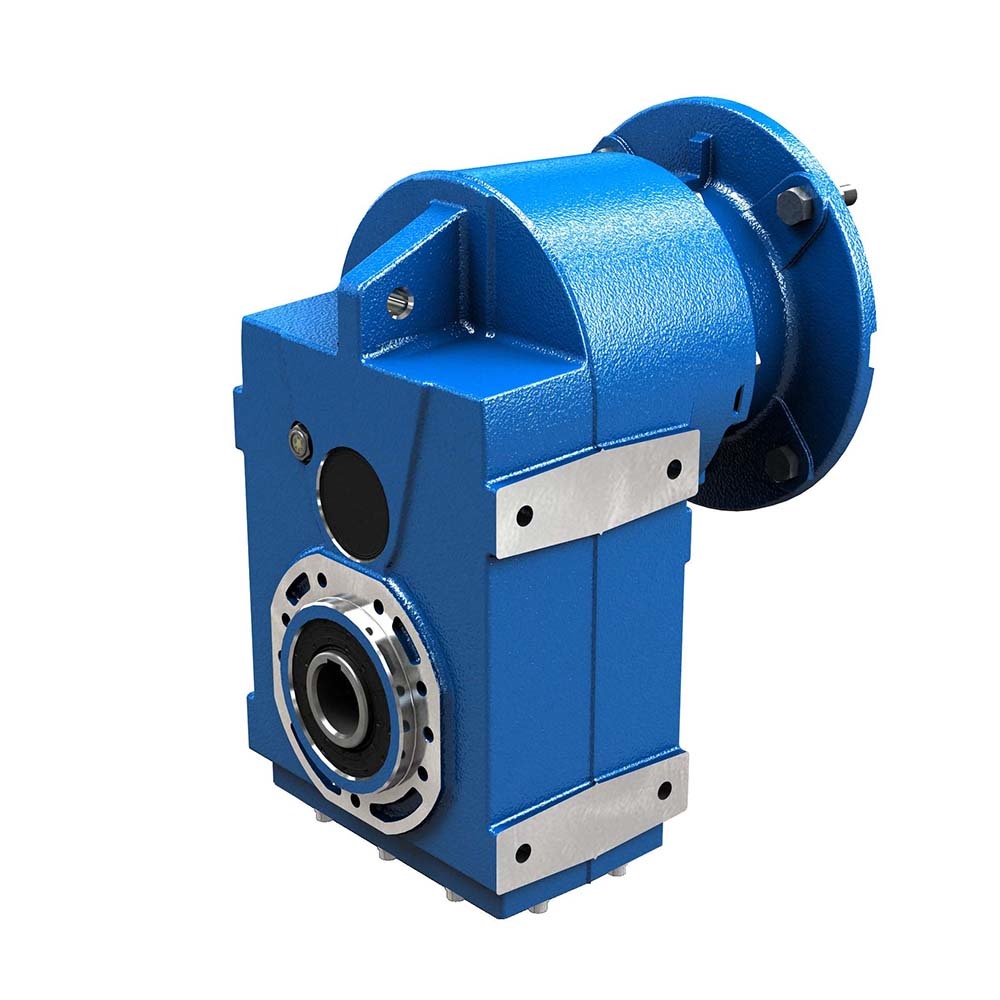

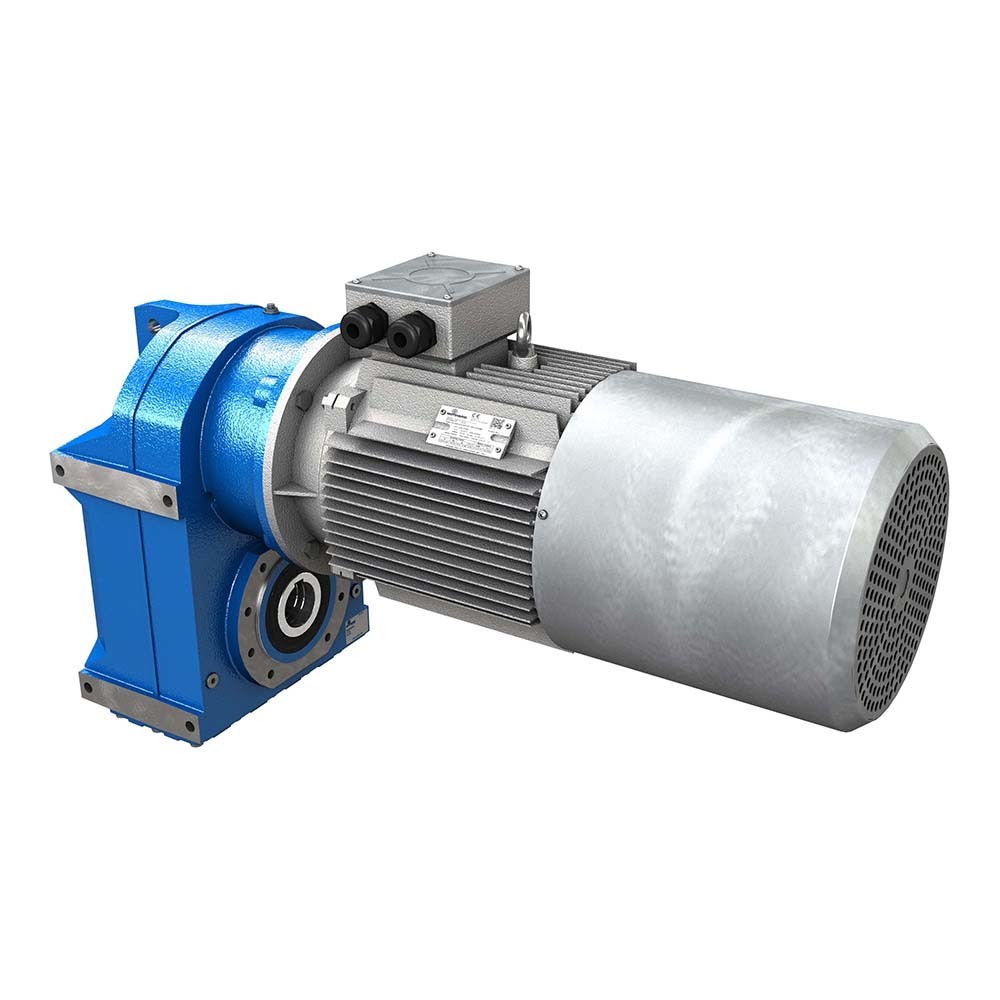

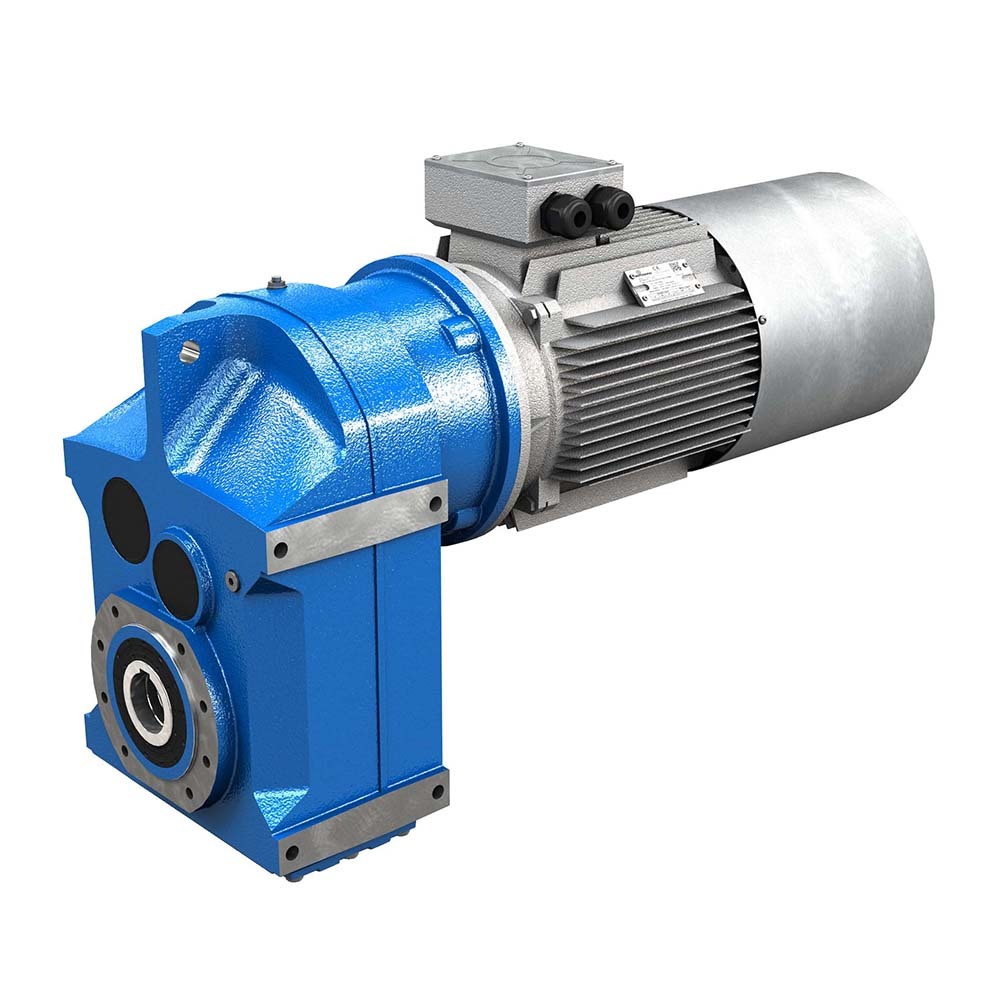

The S series shaft-mounted gearmotor, available in cast iron from size 050 to 125, offers a wide range of reduction ratios, ensuring maximum efficiency in all operating conditions.
The new S Series includes two new sizes, 140 and 150, to extend the shaft mounting to heavier applications.
Certifications Available (up to size 125): ATEX 2GD/3GD
Warranty: Two years from date of delivery.
Characteristics
Sizes: 050-060-080-100-125-140-150
- Power from 0,12 kW up to 45 kW with three phase 4 pole motors
- Reduction ratios between 4,06 and 394,69
- Torque max 9.500 Nm
- Admissible radial loads max 30.000 N
Sizes: 050-060-080-100-125
- Universal casing

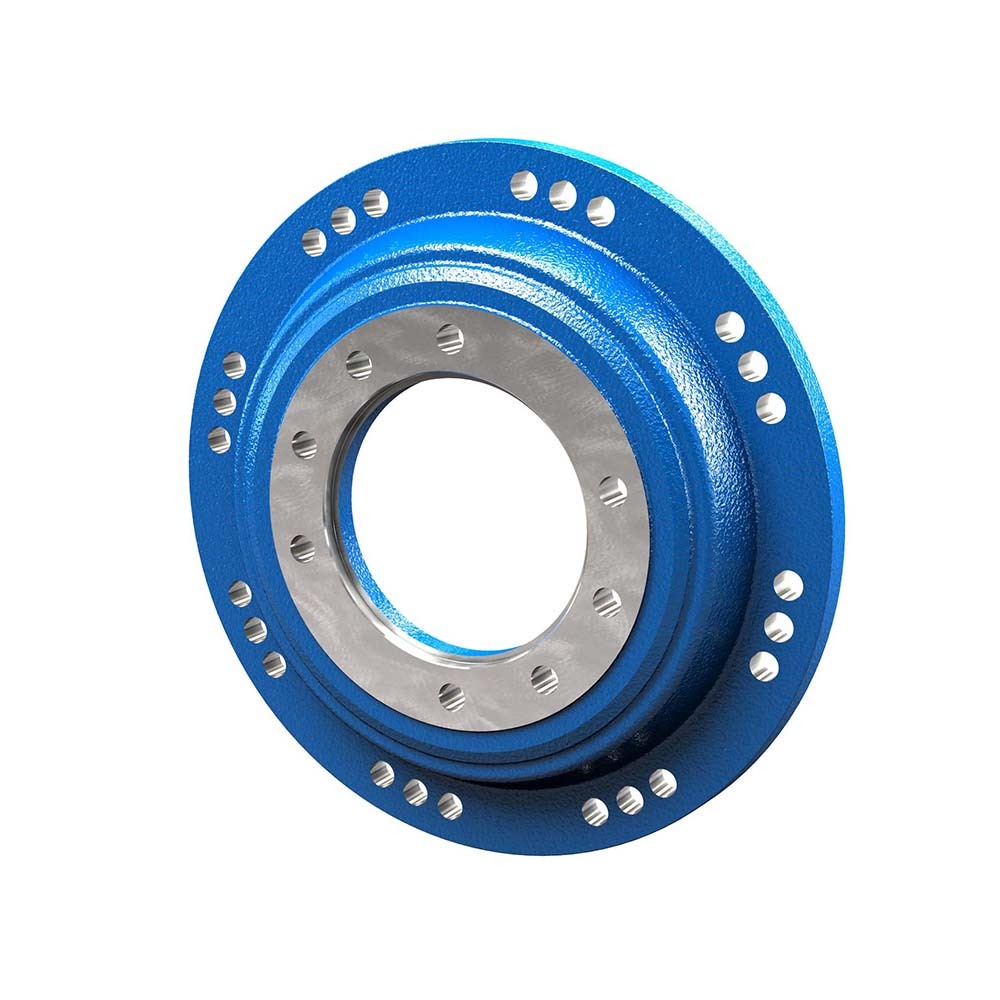

- Versions: S... C Foot-flange mounting / Hollow shaf - S... D Foot-flange mounting / Solid shaft - S... L Foot-flange mounting / Shrink disc shaft
- Gearing with 2 and 3 reduction stages
- Modularity
- Gears hardened and tempered with shaved or ground profile
- Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis
- Excellent mechanical strength
- Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
- Painted with RAL 5010 blue epoxy-polyester powder
Sizes: 140-150
- Universal casing
- Versions: S... C Foot-flange mounting / Hollow shaft, S... L Foot-flange mounting / Shrink disc shaft
- Gearing with 2 and 3 reduction stages
- Gears hardened and tempered with ground profile
- Cases in EN-GJL-200 grey cast iron
- Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
- Gearboxes supplied without lubricant
- Painted with RAL 5010 blue epoxy-polyester powder
-
